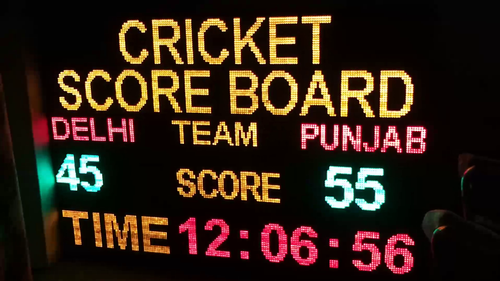

Multi Colour LED Boards

Multi Color LED Display Board show information in different shades and are a great medium for publicizing and showing customer particular messages. Any information, for example, date, time, temperature, and informative message or news might be shown on these boards using various effects like moving, stable, blinking etc

Technical Specifications:

LED Technology - DIP oval LEDs

Visibility - Day and Night

Color - Multicolor (7 Color)

LED per Cluster - 3 (1 Red + 1 Green + 1 Blue)

Module Size - 320mm X 160mm

LED Pitch - 13.33 mm

Module Matrix - 24 X 12

Resolution / Total Pixels - 576 per sq. ft.

Brightness - 1800 cd/sqm

Input Voltage - 185-230V AC, 50HZ

Power Consumption - Average: 30W/sq. ft. Maximum: 50W/sq. ft.

Ventilation - At bottom, 110-240 Volt AC Fan

Housing Water Proof, Iron Cabinets (18/20 gauge sheet) – Black Powder coated, Front open, Suitcase type

Data Transmitting / Ports / Connections USB - Pen drive

LAN - Computer LAN Port

Wi-Fi- Mobile APP

2G/3G- GPRS/3G Activated SIM (Centrally control for more than 1 boards)
